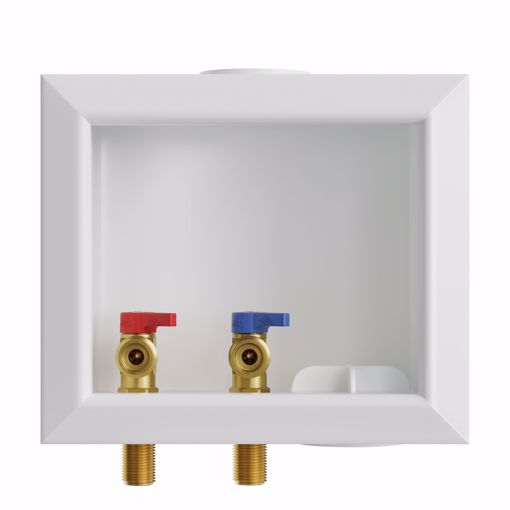

Washing Machine Box, Right Outlet, 1/2" MIP/SWT Connection

• Compact design
• Quarter-turn valves
• Easy to remove test plug
• Can be converted to a center outlet by rotating box 180°
• Meets or exceeds IAPMO PS 54-2015, ASME A112.18.1-2018, and CSA B125.1-18
• cUPC listed

Drain Location:Right

Country of Origin:Taiwan

Inlet Connection Size:1/2"

Outlet Connection Size:2"

Size:1/2"

Valve Type:Ball

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Max Temperature:160°F

Max Pressure:125 psi

Temperature Range:40°F - 160°F

Working Pressure:20 - 125 psi

Working Temperature:120°F

Approved Applications:Water

Color:White

Compatible Pipe:Copper

Compatible Pipe Size:1/2"

Outlet Location:Right Outlet

Warranty:1 Year

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:MIP/SWT

ANSI Standard:ANSI 61-2022

ASME Standard:ASME A112.18.1-2018

CEC Compliant:No

IAPMO Listed:Yes

IAPMO Standard:IAPMO PS 54-2021

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:No

NSF Standard:NSF 61-2022

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN 61-2022
