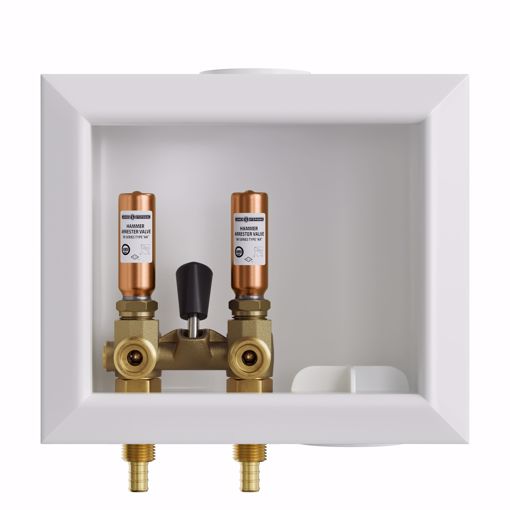

    Washing Machine Box, Right Outlet with Single Lever Valve and Water Hammer Arrestor, 1/2" PEX F1807 Connection

    SKU: B05758
    • Compact design
    • Single lever controls both valves
    • Easy to remove test plug
    • Can be converted to a center outlet by rotating box 180°
    • Meets or exceeds IAPMO PS 54-2015, ASME A112.18.1-2018, and CSA B125.1-18
    • cUPC listed

    This Jones Stephens Washing Machine Outlet Box is designed with a single lever to provide convenient and quick water supply shut-off access in the event of a leak or broken hose. The integrated water hammer arrestor absorbs the impact to pipes when flowing water suddenly stops and prevents knocking noises in the pipe. Compact in design, this right outlet box features a 1/2” PEX F1807 connection and includes all necessary parts for installation and testing. All parts are designed with quality engineering and construction to be durable and reliable to meet Jones Stephens’ highest quality standards.

    • Compact design
    • Single lever controls both valves
    • Easy to remove test plug
    • Can be converted to a center outlet by rotating box 180°
    • Meets or exceeds IAPMO PS 54-2015, ASME A112.18.1-2018, and CSA B125.1-18
    • cUPC listed

    Drain Location:Right

    Country of Origin:Taiwan

    Inlet Connection Size:1/2"

    Outlet Connection Size:2"

    Size:1/2"

    Valve Type:Ball

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Max Temperature:160°F

    Max Pressure:125 psi

    Temperature Range:40°F - 160°F

    Working Pressure:20 - 125 psi

    Working Temperature:120°F

    Approved Applications:Water

    Color:White

    Compatible Pipe:PEX

    Compatible Pipe Size:1/2"

    Outlet Location:Right Outlet

    Warranty:1 Year

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:F1807 Crimp PEX

    ANSI Standard:ANSI 61-2022

    ASME Standard:ASME A112.18.1-2018

    CEC Compliant:No

    IAPMO Listed:Yes

    IAPMO Standard:IAPMO PS 54-2021

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:No

    NSF Standard:NSF 61-2022

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN 61-2022

    Products specifications
    Product Washing Machine Boxes
    Style with Hammer Arrester
    Type Crimp Pex
    Color White
    Size 1/2"
    Compatible Pipe PEX
    Compatible Pipe Size 1/2"
