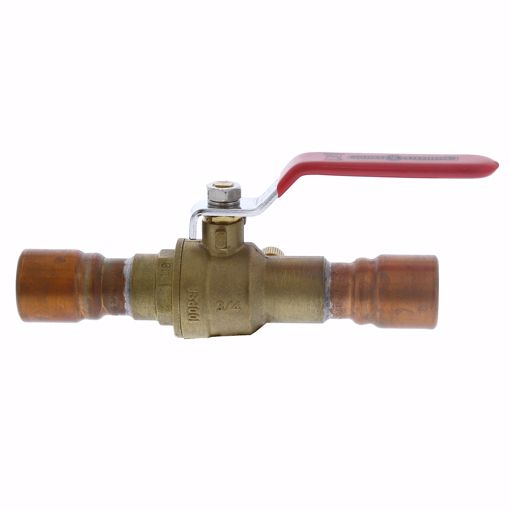

3/4" Full Port Brass Ball Valve with Drain, CPVC Connection

• Quarter-turn valve with reversible handle
• Forged valve body
• Convenient CPVC socket connection
• Integral bleeder valve for easy draining of piping system
• Certified by IAPMO as compliant with NSF/ANSI/CAN 61-2022 as suitable for use in drinking water systems
• Certified by IAPMO to NSF/ANSI 372-2022 as lead free
• Certified by IAPMO/ ANSI Z1157-2014e1 (R2019) to NSF/ANSI 14-2010a as lead free

Drain Location:Side

Country of Origin:USA

Material:Brass

# of Handles:1

Size:3/4"

Valve Type:Ball

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Fits Pipe Size:3/4"

Max Temperature:180°F

Pipe/Tubing Size:3/4"

Max Pressure:100 psi

Temperature Range:32°F - 180°F

Color:Brass

AB100 Certified:N/A

cUPC Listed:Yes

UPC Listed:Yes

End Connections:CPVC

ANSI Standard:ANSI Standard:ANSI Standard:ANSI Standard:ANSI 14-2010aANSI 61-2022ANSI 372-2022ANSI Z1157-2014e1

ASME Standard:ASME A112.4.14-2022

IAPMO Listed:Yes

IAPMO Standard:IAPMO Z1157-2014e1

Lead Law Compliant:Yes

MASS Approved:Yes

NSF Certified:Yes

NSF Standard:NSF Standard:NSF Standard:NSF 14-2010aNSF 61-2022NSF 372-2022

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:CAN 61-2022CAN 372-2022
