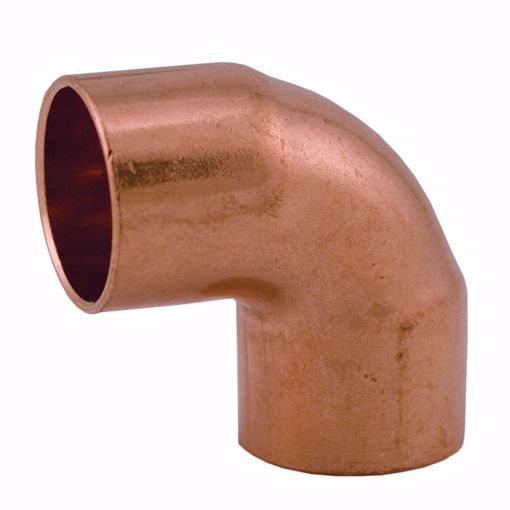

3/4" Wrot Copper Short Turn 90° Elbow

• Approved for use in residential and commercial applications
• Designed for use with ASTM B88 copper pipe
• Working pressure is 580 psi
• Lead law compliant
• Meets ASME B16.22 standards
• UPC listed

Inlet Connection Size:3/4"

Material:Copper

Outlet Connection Size:3/4 in

Fits Pipe Size:3/4"

Max Temperature:400°F

Max Pressure:2320 psi

Temperature Range:-20°F to 400°F

Tensile Strength:207

Working Pressure:580 psi

Working Temperature:32°F - 212°F

Approved Applications:Potable Water

Color:Copper

Compatible Pipe:Copper Pipe Under ASTM B88

Compatible Pipe Size:3/4"

Warranty:1 Year

CEC Listed:No

cUPC Listed:No

UPC Listed:Yes

End Connections:CXC

ANSI Standard:ANSI Standard:ANSI 61ANSI 372

ASME Standard:ASME B16.22

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:Yes

NSF Standard:NSF Standard:NSF 61NSF 372

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:CAN 61CAN 372
