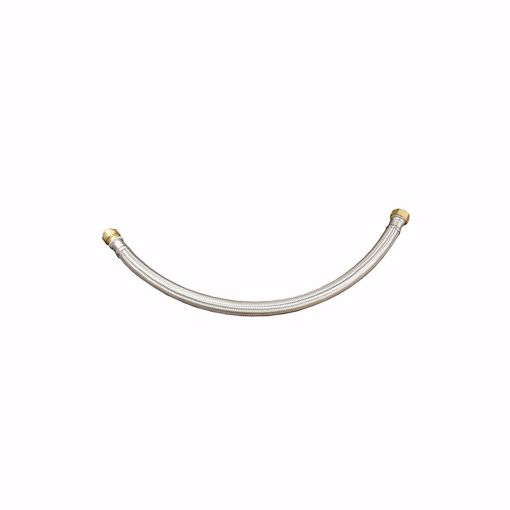

    Picture of 3/4" PUSH x 3/4" FIP x 18" Water Heater Connector

    3/4" PUSH x 3/4" FIP x 18" Water Heater Connector

    PBLF
    SKU: C76614LF
    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 180°F and maximum pressure of 200 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.6/CSA B125.6, UPC, cUPC by IAPMO
    • 5 year warranty

    Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!

    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 180°F and maximum pressure of 200 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.6/CSA B125.6, UPC, cUPC by IAPMO
    • 5 year warranty

    Material:Stainless Steel

    Size:3/4" x 3/4"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Max Temperature:180°F

    Max Pressure:200 psi

    Temperature Range:40°F -140°F

    Working Pressure:60 psi

    Working Temperature:40°F - 140°F

    Approved Applications:Potable Water

    Color:Stainless Steel

    Gasket Material:EPDM, Peroxide Cured

    Length:18"

    Warranty:5 Year

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:End Connections:PushFIP

    ANSI Standard:ANSI Standard:ANSI 61-2021ANSI 372-2022

    ASME Standard:ASME A112.18.6-2017

    CEC Compliant:No

    CSA Listed:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:Yes

    NSF Certified:No

    NSF Standard:NSF Standard:NSF 372-2022NSF 61-2021

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 372-2022CAN 61-2021

    Products specifications
    Product Water Heater Connectors
    Style Braided
    Type Push-On
    Color Stainless Steel
    Material Stainless Steel
    Size 3/4" x 3/4"
    Length 18"
