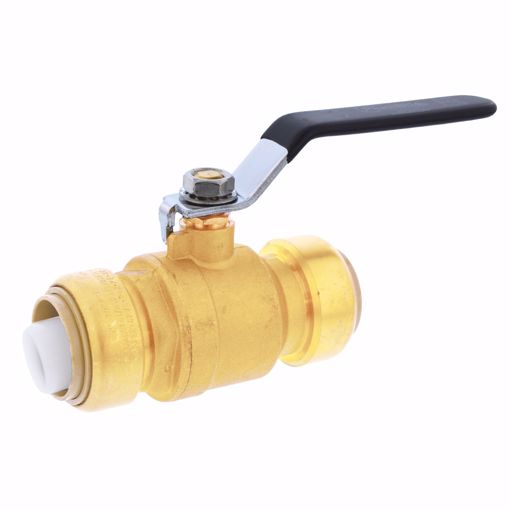

    1-1/4" PlumBite® Push On Ball Valve, Bag of 1

    SKU: C77463LF
    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 180°F and maximum pressure of 200 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, NSF/ANSI 14, IAPMO/ANSI Z1157-2014e1, UPC, cUPC by IAPMO
    • Lead Free
    • 2 year warranty
    • Individually packaged

    Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!

    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 180°F and maximum pressure of 200 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, NSF/ANSI 14, IAPMO/ANSI Z1157-2014e1, UPC, cUPC by IAPMO
    • Lead Free
    • 2 year warranty
    • Individually packaged

    Country of Origin:China

    Handle Length:4.05

    Handle Material:Steel

    Handle Type:Lever

    Material:Brass

    Size:1-1/4"

    Valve Body Material:Brass

    Valve Operator:Lever Handle

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Fits Pipe Size:1/4"

    Max Temperature:180°F

    Max Pressure:200 psi

    Temperature Range:40°F - 140°F

    Working Temperature:40°F - 140°F

    Approved Applications:Potable Water

    Color:Rough Brass

    Gasket Material:EPDM, Peroxide Cured

    Warranty:2 Year

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:Push

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2021ANSI 14-2010aANSI Z1157-2014e1

    CEC Compliant:No

    CSA Listed:No

    IAPMO Listed:Yes

    IAPMO Standard:IAPMO Z1157-2014e1

    Lead Law Compliant:Yes

    MASS Approved:Yes

    NSF Certified:No

    NSF Standard:NSF Standard:NSF Standard:NSF 372-2022NSF 61-2021NSF 14-2010a

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 372-2022CAN 61-2021

    Products specifications
    Product Ball Valves
    Type Push-On
    Color Rough Brass
    Material Brass
    Size 1-1/4"
