    Picture of 1/2" x 1/4" OD COMP PlumBite® Push On Supply Stop, Angle, Bag of 1
    Picture of 1/2" x 1/4" OD COMP PlumBite® Push On Supply Stop, Angle, Bag of 1
    Picture of 1/2" x 1/4" OD COMP PlumBite® Push On Supply Stop, Angle, Bag of 1
    Picture of 1/2" x 1/4" OD COMP PlumBite® Push On Supply Stop, Angle, Bag of 1
    Picture of 1/2" x 1/4" OD COMP PlumBite® Push On Supply Stop, Angle, Bag of 1

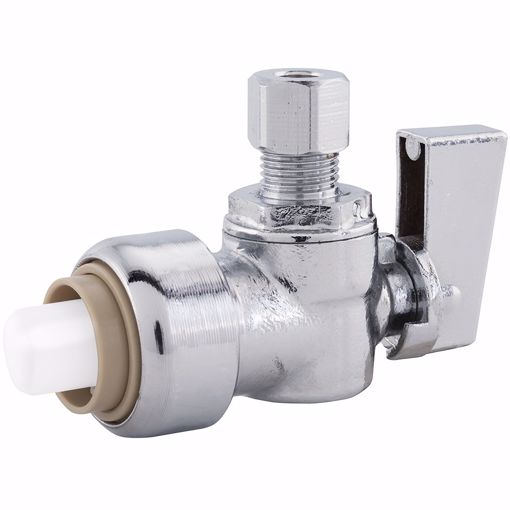

    1/2" x 1/4" OD COMP PlumBite® Push On Supply Stop, Angle, Bag of 1

    SKU: C77474LF
    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 180°F and maximum pressure of 200 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61: Q = 0.5, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC by IAPMO
    • Lead Free
    • 2 year warranty
    • Individually packaged

    Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!

    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 180°F and maximum pressure of 200 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61: Q = 0.5, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC by IAPMO
    • Lead Free
    • 2 year warranty
    • Individually packaged

    Country of Origin:China

    Material:Brass

    Size:1/2" x 1/4"

    Valve Operator:Lever Handle

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Fits Pipe Size:1/2"

    Max Temperature:180°F

    Max Pressure:200 psi

    Temperature Range:40°F -140°F

    Working Temperature:40°F - 140°F

    Approved Applications:Potable Water

    Color:Chrome Plated

    Gasket Material:EPDM, Peroxide Cured

    Turn Type:Quarter-Turn

    Warranty:2 Year

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:End Connections:PushCompression

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2021: Q = 0.5ANSI 14-2021

    ASME Standard:ASME A112.18.1-2018

    CEC Compliant:No

    CSA Listed:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:Yes

    NSF Certified:No

    NSF Standard:NSF Standard:NSF Standard:NSF 372-2022NSF 61-2021: Q = 0.5NSF 14-2021

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 372-2022CAN 61-2021: Q = 0.5

    Products specifications
    Product Supply Stops
    Style Angle
    Type Push-On
    Color Chrome Plated
    Material Brass
    Size 1/2" x 1/4"
