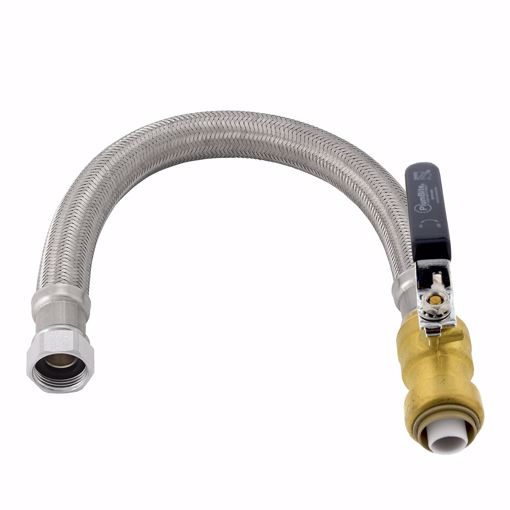

3/4" x 3/4" FIP x 18" PlumBite® Push On Water Heater Connector with Ball Valve

• Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
• No soldering, glue, heat or tools required to join the pipe
• Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
• Maximum temperature of 180°F and maximum pressure of 200 PSI
• Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.6/CSA B125.6, UPC, cUPC by IAPMO
• 2 year warranty

Country of Origin:China

Handle Length:4"

Handle Material:Steel

Handle Type:Lever

Material:Stainless Steel

Size:3/4" x 3/4"

Valve Body Material:Brass

Valve Operator:Lever Handle

Valve Size:3/4"

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Fits Pipe Size:3/4"

Max Temperature:180°F

Max Pressure:200 psi

Temperature Range:40°F -140°F

Working Pressure:60 psi

Working Temperature:40°F - 140°F

Approved Applications:Potable Water

Color:Rough Brass

Gasket Material:EPDM, Peroxide Cured

Length:18"

Warranty:2 Year

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:End Connections:PushFIP

ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2021

ASME Standard:ASME A112.18.6-2017

CEC Compliant:No

CSA Listed:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:Yes

NSF Certified:No

NSF Standard:NSF Standard:NSF 372-2022NSF 61-2021

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:CAN 372-2022CAN 61-2021
