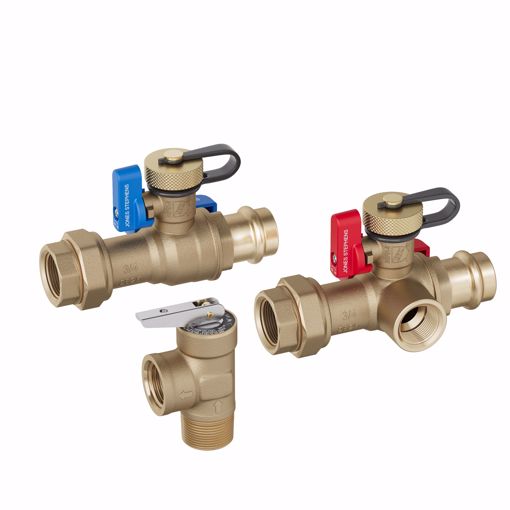

    3/4" Press Tankless Water Heater Valve Service Kit with Pressure Relief Valve

    SKU: D05103
    • 3/4" press end connection
    • Constructed of forged brass
    • Color-coded hot and cold valves
    • Lead Law compliant
    • Rated up to 250 psi
    • Working pressure: 80 psi
    • 32°F - 180°F temperature range
    • Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, NSF/ANSI 14 and IAPMO/ANSI Z1157 standards
    • IAPMO approved for cUPC usage (components individually certified)
    • Lead Law compliant, including PRV

    D05103 includes hot and cold water valves with ¾” press connections to link a tankless water heater to its water supply. Identifying hot and cold water systems is made simple with their color-coded red and blue handles. Their strong, lead law compliant, forged brass construction reduces the risk of pinhole leaks, and their stems are blowout-proof – ensuring system durability and safety.

    • 3/4" press end connection
    • Constructed of forged brass
    • Color-coded hot and cold valves
    • Lead Law compliant
    • Rated up to 250 psi
    • Working pressure: 80 psi
    • 32°F - 180°F temperature range
    • Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, NSF/ANSI 14 and IAPMO/ANSI Z1157 standards
    • IAPMO approved for cUPC usage (components individually certified)
    • Lead Law compliant, including PRV

    Country of Origin:Thailand

    Inlet Connection Size:3/4"

    Material:Brass

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Max Temperature:180°F

    Max Pressure:250 psi

    Temperature Range:32°F - 180°F

    Working Pressure:80 psi

    Working Temperature:73°F

    Approved Applications:Potable Water

    Color:Brass

    Warranty:1 Year

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:Press

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI Standard:ANSI 14ANSI 61ANSI 372ANSI Z1157

    ASME Standard:A112.4.14

    IAPMO Listed:Yes

    IAPMO Standard:IAPMO Z1157

    Lead Law Compliant:Yes

    NSF Certified:No

    NSF Standard:NSF Standard:NSF Standard:NSF 14NSF 61NSF 372

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 61CAN 372
