    3/4” SWT Tankless Water Heater Valve Service Kit with Pressure Relief Valve and Gas Connector

    SKU: D05111
    • ¾” valve size
    • Forged brass
    • Sweat connection
    • Leak-free
    • Includes pressure relief valve
    • Includes 1” OD (3/4” ID) X 24” long, ¾” male pipe thread X ¾” female pipe thread yellow coated corrugated stainless steel gas connector
    • Lead law compliant
    • cUPC and IAPMO approved (components individually certified)
    • Meets NSF/ANSI/CAN 372-2022, NSF/ANSI/CAN 61-2021, NSF/ANSI 14-2010a, and IAPMO/ANSI Z1157-2014e1 standards

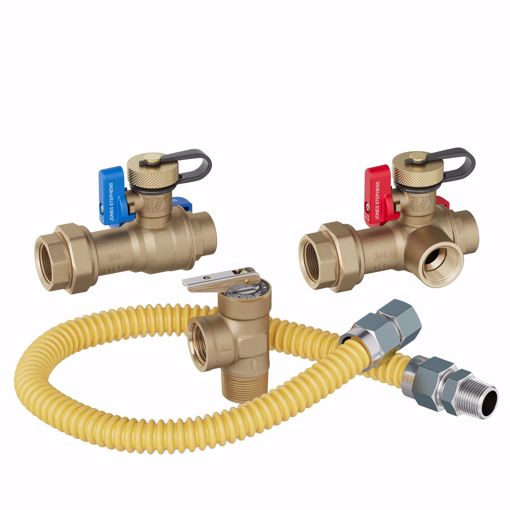

    This tankless water heater kit contains hot and cold water valves, a pressure relief valve, and a gas connector. Identifying hot and cold water systems is made simple with the valves’ color-coded red and blue handles. Their strong, lead law compliant, forged brass construction reduces the risk of pinhole leaks, and their stems are blowout-proof – ensuring system durability and safety. The gas connector is constructed of yellow coated corrugated stainless steel to provide strength and longevity.

    • ¾” valve size
    • Forged brass
    • Sweat connection
    • Leak-free
    • Includes pressure relief valve
    • Includes 1” OD (3/4” ID) X 24” long, ¾” male pipe thread X ¾” female pipe thread yellow coated corrugated stainless steel gas connector
    • Lead law compliant
    • cUPC and IAPMO approved (components individually certified)
    • Meets NSF/ANSI/CAN 372-2022, NSF/ANSI/CAN 61-2021, NSF/ANSI 14-2010a, and IAPMO/ANSI Z1157-2014e1 standards

    Inlet Connection Size:3/4"

    Size:3/4"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Max Temperature:140°F

    Max Pressure:150 psi

    Temperature Range:33°F-120°F

    Working Pressure:80 psi

    Working Temperature:120°F

    Approved Applications:Potable Water

    Warranty:1 Year

    AB100 Certified:N/A

    cUPC Listed:Yes

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI Standard:ANSI 14-2010aANSI 61-2021ANSI 372-2022ANSI Z1157-2014e1

    ASME Standard:A112.4.14-2022

    IAPMO Listed:Yes

    IAPMO Standard:IAPMO Z1157-2014e1

    Lead Law Compliant:Yes

    NSF Standard:NSF Standard:NSF Standard:NSF 14-2010aNSF 61-2021NSF 372-2022

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 61-2019CAN 372-2022

    Products specifications
    Product Tankless Valve Kits
    Type SWT
    Size 3/4"
