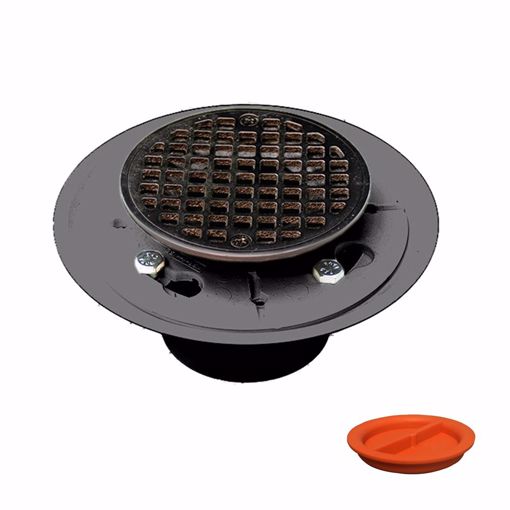

    2" x 3" PVC Shower Drain with 2" PVC Spud and 4" Round Oil Rubbed Bronze Strainer with Test Plug

    SKU: D5001RBTP
    • Fits over 2” or inside 3” Schedule 40 DWV pipe
    • Comes with round screw-in oil rubbed bronze strainer
    • Durable gray PVC spud to camouflage dirt and soap scum
    • Ability to use a snap-in or screw-in strainer
    • Beveled edge allows for recessed installation
    • Reversible clamping ring for additional 1/2" height adjustment
    • Brass inserts ensure secure clamping of membrane
    • Dual weep holes
    • Recessed sump area for added drainage
    • Use D50998 tailpiece extension when additional height is needed
    • Complies with new construction drain test requirements
    • Covers both the wet test from the shower, as well as pressure test from above floors

    Jones Stephens’ 2" x 3" PVC Shower Drain with 2" PVC Spud and 4" Round Oil Rubbed Bronze Strainer with Test Plug is the trusted, professional choice for your shower or floor drain installation. This drain comes with a round screw-in oil rubbed bronze strainer. It has a low profile for first and second floor installations, and its beveled edge allows for recessed installation. It comes complete with dual weep holes and a recessed sump area for added drainage. Its reversible clamping ring allows for an additional half inch of height adjustment. Use the D50998 tailpiece extension when additional height is needed. Before testing, the spud should be threaded down to its lowest point, making contact with the plug. The plug should make complete contact with the drain opening. Remove the test plug with pliers and discard after testing.

    • Fits over 2” or inside 3” Schedule 40 DWV pipe
    • Comes with round screw-in oil rubbed bronze strainer
    • Durable gray PVC spud to camouflage dirt and soap scum
    • Ability to use a snap-in or screw-in strainer
    • Beveled edge allows for recessed installation
    • Reversible clamping ring for additional 1/2" height adjustment
    • Brass inserts ensure secure clamping of membrane
    • Dual weep holes
    • Recessed sump area for added drainage
    • Use D50998 tailpiece extension when additional height is needed
    • Complies with new construction drain test requirements
    • Covers both the wet test from the shower, as well as pressure test from above floors

    Cover Finish:Oil Rubbed Bronze

    Cover Shape:Round

    Pan Size:6-1/2"

    Spud Location:Top

    Material:PVC

    Size:2" x 3"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    OD:6-1/2"

    Fits Pipe Size:2" x 3"

    Max Temperature:140°F

    Temperature Range:140°F

    Working Pressure:14.2 psi

    Working Temperature:140°F

    Color:Oil Rubbed Bronze

    Cover Size:4-1/4"

    Primer Tapped:No

    Spud Size:2"

    AB100 Certified:N/A

    ADA Compliant:No

    MASS Approved:No

    HAZMAT:No

    Products specifications
    Product Shower Drains
    Style Screw-In
    Style with PVC Spud
    Style with Test Plug
    Type Solvent Weld
    Color Oil Rubbed Bronze
    Material PVC
    Size 2" x 3"
    Cover Finish Oil Rubbed Bronze
    Pan Size 6-1/2"
