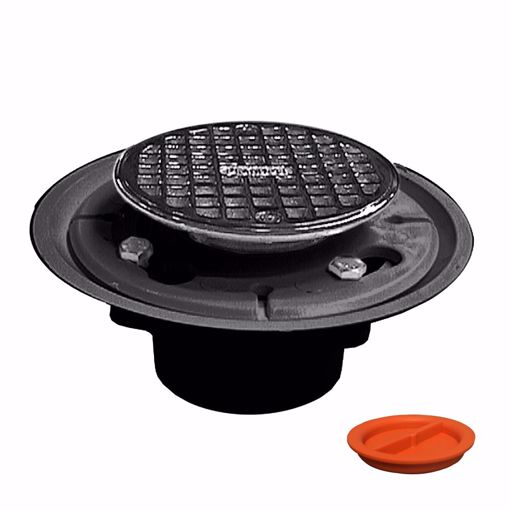

2" x 3" PVC Shower Drain with 2" Brass Spud and 4" Round Stainless Steel Strainer with Test Plug

SKU: D50101TP

Fits over 2” or inside 3” Schedule 40 DWV pipe
Comes with round screw-in stainless steel strainer
Low profile for first and second floor installations
Beveled edge allows for recessed installation
Brass inserts ensure secure clamping of membrane
Dual weep holes
Recessed sump area for added drainage
Replacement strainer - D60780
Complies with new construction drain test requirements
Covers both the wet test from the shower, as well as pressure test from above floors

Product Overview
Product Attributes
Certifications/Specifications
Resources
Contact Us

Jones Stephens’ 2" x 3" PVC Shower Drain with 2" Brass Spud and 4" Round Stainless Steel Strainer with Test Plug is the trusted, professional choice for your shower or floor drain installation. This drain comes with a round screw-in stainless steel strainer. It has a low profile for first and second floor installations, and its beveled edge allows for recessed installation. It comes complete with dual weep holes and a recessed sump area for added drainage. Its reversible clamping ring allows for an additional half inch of height adjustment. Before testing, the spud should be threaded down to its lowest point, making contact with the plug. The plug should make complete contact with the drain opening. Remove the test plug with pliers and discard after testing.

Fits over 2” or inside 3” Schedule 40 DWV pipe
Comes with round screw-in stainless steel strainer
Low profile for first and second floor installations
Beveled edge allows for recessed installation
Brass inserts ensure secure clamping of membrane
Dual weep holes
Recessed sump area for added drainage
Replacement strainer - D60780
Complies with new construction drain test requirements
Covers both the wet test from the shower, as well as pressure test from above floors

Cover Finish:Stainless Steel

Cover Shape:Round

Pan Size:6-1/2"

Spud Location:Top

Material:PVC

Size:2" x 3"

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

OD:6-1/2"

Fits Pipe Size:2" x 3"

Max Temperature:140°F

Temperature Range:140°F

Working Pressure:14.2 psi

Working Temperature:140°F

Color:Stainless Steel

Cover Size:4"

Primer Tapped:No

AB100 Certified:N/A

ADA Compliant:No

MASS Approved:No

HAZMAT:No

Spec Sheet

Products specifications

Product	Shower Drains
Style	Screw-In
Style	with Brass Spud
Style	with Test Plug
Type	Solvent Weld
Color	Stainless Steel
Material	PVC
Size	2" x 3"
Cover Finish	Stainless Steel
Pan Size	6-1/2"
