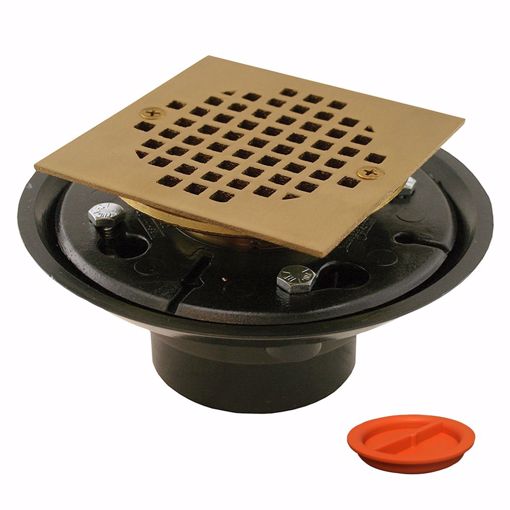

    2" x 3" ABS Shower Drain with 2" Brass Spud and 4" Square Polished Brass Strainer with Test Plug

    SKU: D50153TP
    • Fits over 2” or inside 3” Schedule 40 DWV pipe
    • Comes with square screw-in polished brass strainer
    • Low profile for first and second floor installations
    • Beveled edge allows for recessed installation
    • Brass inserts ensure secure clamping of membrane
    • Dual weep holes
    • Recessed sump area for added drainage
    • Replacement strainer - C60813
    • Square strainer allows for easier tiling on floor
    • Complies with new construction drain test requirements
    • Covers both the wet test from the shower, as well as pressure test from above floors

    Jones Stephens’ 2" x 3" ABS Shower Drain with 2" Brass Spud and 4" Square Polished Brass Strainer with Test Plug is the trusted, professional choice for your shower or floor drain installation. This drain comes with a square screw-in polished brass strainer. It has a low profile for first and second floor installations, and its beveled edge allows for recessed installation. It comes complete with dual weep holes and a recessed sump area for added drainage. Its reversible clamping ring allows for an additional half inch of height adjustment, and its square strainer allows for easier tiling on the floor. It complies with new construction drain test requirements and covers both the wet test from the shower as well as the pressure test from above floors. Before testing, the spud should be threaded down to its lowest point, making contact with the plug. The plug should make complete contact with the drain opening. Remove the test plug with pliers and discard after testing.

    • Fits over 2” or inside 3” Schedule 40 DWV pipe
    • Comes with square screw-in polished brass strainer
    • Low profile for first and second floor installations
    • Beveled edge allows for recessed installation
    • Brass inserts ensure secure clamping of membrane
    • Dual weep holes
    • Recessed sump area for added drainage
    • Replacement strainer - C60813
    • Square strainer allows for easier tiling on floor
    • Complies with new construction drain test requirements
    • Covers both the wet test from the shower, as well as pressure test from above floors

    Cover Finish:Polished Brass

    Cover Shape:Square

    Pan Size:6-1/2"

    Spud Location:Top

    Material:ABS

    Size:2" x 3"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    OD:6-1/2"

    Fits Pipe Size:2" x 3"

    Max Temperature:140°F

    Temperature Range:140°F

    Working Pressure:14.2 psi

    Working Temperature:140°F

    Color:Polished Brass

    Cover Size:4"

    Primer Tapped:No

    AB100 Certified:N/A

    ADA Compliant:No

    MASS Approved:No

    HAZMAT:No

    Products specifications
    Product Shower Drains
    Style Screw-In
    Style with Brass Spud
    Style with Test Plug
    Type Solvent Weld
    Color Polished Brass
    Material ABS
    Size 2" x 3"
    Cover Finish Polished Brass
    Pan Size 6-1/2"
