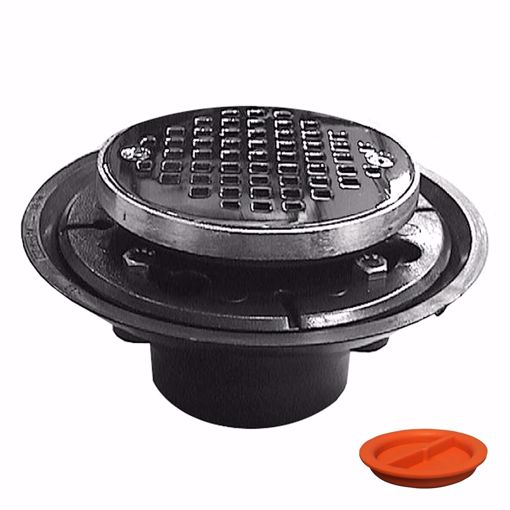

2" x 3" ABS Shower Drain with 2" ABS Spud and 4" Round Chrome Plated Cast Strainer with Grout Ring and Test Plug

SKU: D50310TP

Fits over 2” or inside 3” Schedule 40 DWV pipe
Comes with round screw-in chrome plated cast strainer
Low profile for first and second floor installations
Beveled edge allows for recessed installation
Brass inserts ensure secure clamping of membrane
Grout ring provides finished appearance between tile floor and strainer
Dual weep holes
Recessed sump area for added drainage
Replacement strainer - C60806 and C60818
Use D50998 tailpiece extension when additional height is needed
Complies with new construction drain test requirements
Covers both the wet test from the shower, as well as pressure test from above floors

Jones Stephens’ 2" x 3" ABS Shower Drain with 2" ABS Spud and 4" Round Chrome Plated Cast Strainer with Grout Ring and Test Plug is the trusted, professional choice for your shower or floor drain installation. This drain comes with a round screw-in chrome plated cast strainer. It has a low profile for first and second floor installations, and its beveled edge allows for recessed installation. It comes complete with dual weep holes and a recessed sump area for added drainage. Its reversible clamping ring allows for an additional half inch of height adjustment. It complies with new construction drain test requirements and covers both the wet test from the shower as well as the pressure test from above floors. Use the D50998 tailpiece extension when additional height is needed. Before testing, the spud should be threaded down to its lowest point, making contact with the plug. The plug should make complete contact with the drain opening. Remove the test plug with pliers and discard after testing.

Fits over 2” or inside 3” Schedule 40 DWV pipe
Comes with round screw-in chrome plated cast strainer
Low profile for first and second floor installations
Beveled edge allows for recessed installation
Brass inserts ensure secure clamping of membrane
Grout ring provides finished appearance between tile floor and strainer
Dual weep holes
Recessed sump area for added drainage
Replacement strainer - C60806 and C60818
Use D50998 tailpiece extension when additional height is needed
Complies with new construction drain test requirements
Covers both the wet test from the shower, as well as pressure test from above floors

Products specifications

Product	Shower Drains
Style	Screw-In
Style	with ABS Spud
Style	with Grout Ring
Style	with Test Plug
Type	Solvent Weld
Color	Chrome Plated
Material	ABS
Size	2" x 3"
Cover Finish	Chrome Plated
Pan Size	6-1/2"
