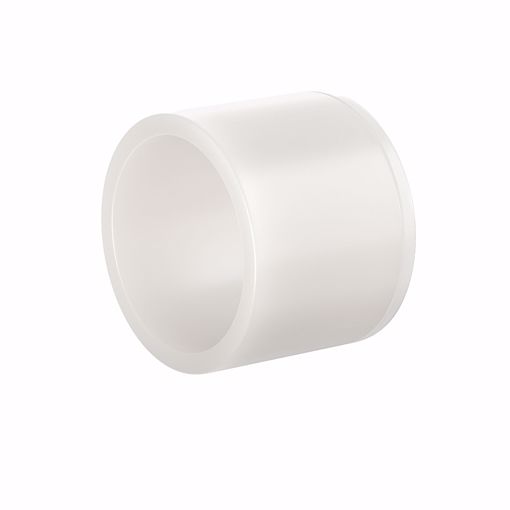

    2” F1960 PEX Expansion Ring with Stop, Bag of 5

    SKU: F76073
    • Designed for use with PEX-A pipe and F1960 expansion fittings
    • Requires expansion tool
    • Crosslinked polyethylene construction
    • Certified to NSF 61

    Manufactured to the highest industry standards, Jones Stephens' F1960 cold expansion fittings provide precise, secure, and leak-free connections. Made with strong polymer material, F1960 cold expansion fittings are corrosion and chlorine/chemical resistant – making them a great fit for aggressive water environments. Approved for use with PEX-A piping.

    • Designed for use with PEX-A pipe and F1960 expansion fittings
    • Requires expansion tool
    • Crosslinked polyethylene construction
    • Certified to NSF 61

    Country of Origin:Spain

    Compatible Valve Type:Compatible Valve Type:Compatible Valve Type:F1960F1807F2159

    Inlet Connection Size:2"

    Material:Crosslinked Polyethylene

    Outlet Connection Size:2"

    Size:2"

    Fits Pipe Size:2"

    Max Temperature:180°F

    Pipe/Tubing Size:2"

    Max Pressure:100 psi

    Temperature Range:33°F - 180°F

    Tensile Strength:>2900 psi

    Working Pressure:100 psi

    Working Temperature:180°F

    Approved Applications:Water

    Color:Natural

    Compatible Pipe:PEX-A Pipe

    Compatible Pipe Size:2"

    Length:2.13"

    Wall Thickness:.236"

    Warranty:11-25 Year

    ADA Compliant:No

    CEC Listed:No

    cUPC Listed:No

    UPC Listed:No

    End Connections:Expansion PEX

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI 14ANSI 61ANSI 372

    CEC Compliant:No

    IAPMO Listed:No

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:Yes

    NSF Standard:NSF Standard:NSF Standard:NSF 14NSF 61NSF 372

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 61CAN 372

    Products specifications
    Product Rings
    Color Natural
    Material Crosslinked Polyethylene
    Size 2"
    Length 2.13"
    Compatible Pipe PEX-A Pipe
    Compatible Pipe Size 2"
    Wall Thickness .236"
