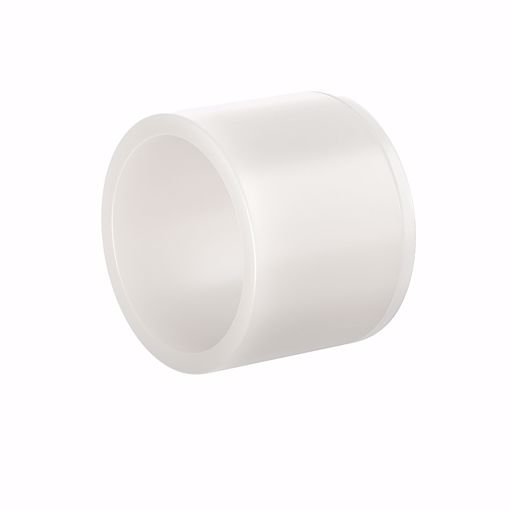

3/4" F1960 PEX Expansion Ring with Stop, Bag of 40

• Designed for use with PEX-A pipe and F1960 expansion fittings
• Requires expansion tool
• Crosslinked polyethylene construction
• Certified to NSF 61

Country of Origin:Spain

Inlet Connection Size:3/4"

Material:Crosslinked Polyethylene

Outlet Connection Size:3/4"

Size:3/4"

Fits Pipe Size:3/4"

Max Temperature:180°F

Max Pressure:100 psi

Temperature Range:33°F - 180°F

Tensile Strength:>2900 psi

Working Pressure:100 psi

Working Temperature:180°F

Approved Applications:Water

Color:Natural

Compatible Pipe:PEX-A Pipe

Compatible Pipe Size:3/4"

Warranty:11-25 Year

ADA Compliant:No

CEC Listed:No

cUPC Listed:No

UPC Listed:No

End Connections:Expansion PEX

ANSI Standard:ANSI Standard:ANSI Standard:ANSI 14ANSI 61ANSI 372

ASTM Standard:ASTM Standard:ASTM F876ASTM F877

CEC Compliant:No

IAPMO Listed:No

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:Yes

NSF Standard:NSF Standard:NSF Standard:NSF 14NSF 61NSF 372

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:CAN 61CAN 372
