    Picture of 5/8" OD (1/2" ID) Gas Connector Assembly, Yellow Coated, 1/2" MIP x 3/4" FIP Ball Valve x 24"
    Picture of 5/8" OD (1/2" ID) Gas Connector Assembly, Yellow Coated, 1/2" MIP x 3/4" FIP Ball Valve x 24"
    Picture of 5/8" OD (1/2" ID) Gas Connector Assembly, Yellow Coated, 1/2" MIP x 3/4" FIP Ball Valve x 24"
    Picture of 5/8" OD (1/2" ID) Gas Connector Assembly, Yellow Coated, 1/2" MIP x 3/4" FIP Ball Valve x 24"

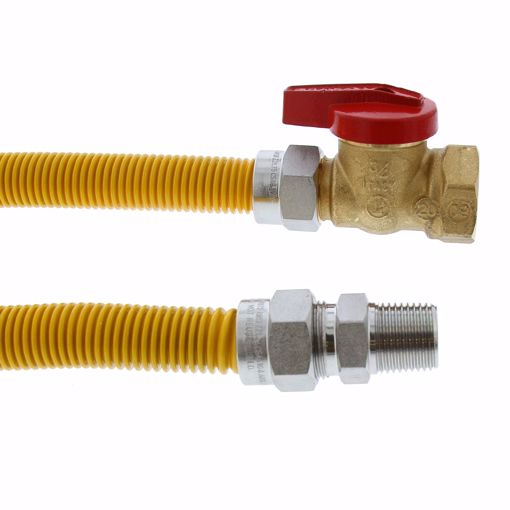

    5/8" OD (1/2" ID) Gas Connector Assembly, Yellow Coated, 1/2" MIP x 3/4" FIP Ball Valve x 24"

    SKU: G71221
    • 150,000BTU (43,961)W
    • Includes ball valve
    • Durable stainless steel 304 material
    • Corrugation extends all the way to the fitting for increased tubing flexibility
    • CSA Design certified domestically and internationally for indoor and outdoor use ANSI Z21.24-2015/CSA 6.10-2015 and ANSI Z21.75-2016/CSA 6.27-2016.
    • 100% leak tested to ensure safety and quality for a product you can trust
    • Corrosion resistant connectors add additional safety in highly corrosive environments or in areas where caustic chemicals are located
    • Minimum fitting tightening torque (in-lb/N-M) 250 / 28.25, Maximum fitting tightening torque 520 / 58.75
    • For proper product selection, use the ID and length of the line to locate the BTU rating

    Jones Stephens’ family of gas connectors are the professional’s choice for all your gas appliance hook-up needs. These connectors are coated yellow for an extra layer of protection and easy identification, and they come with an integrated ball valve – providing convenience and fewer leak points. The flexible hoses are made of durable 304 stainless steel and end fittings are plated for high corrosion resistance. All Jones Stephens gas connectors have quality flared end fittings which create a metal-to-metal seal and are 100% leak tested to ensure safety and quality.

    • 150,000BTU (43,961)W
    • Includes ball valve
    • Durable stainless steel 304 material
    • Corrugation extends all the way to the fitting for increased tubing flexibility
    • CSA Design certified domestically and internationally for indoor and outdoor use ANSI Z21.24-2015/CSA 6.10-2015 and ANSI Z21.75-2016/CSA 6.27-2016.
    • 100% leak tested to ensure safety and quality for a product you can trust
    • Corrosion resistant connectors add additional safety in highly corrosive environments or in areas where caustic chemicals are located
    • Minimum fitting tightening torque (in-lb/N-M) 250 / 28.25, Maximum fitting tightening torque 520 / 58.75
    • For proper product selection, use the ID and length of the line to locate the BTU rating

    Material:Stainless Steel

    Size:1/2" x 3/4"

    BTU:150,000BTU (43,961)W

    ID:1/2"

    OD:5/8"

    Color:Yellow

    Length:24"

    Coating:Yellow Anti-Corrosion Coating

    Warranty:1 Year

    AB100 Certified:N/A

    End Connections:End Connections:MIPFIP

    ANSI Standard:ANSI Standard:ANSI Z21.24-2015ANSI Z21.75-2016

    CSA Listed:Yes

    Lead Law Compliant:No

    MASS Approved:Yes

    HAZMAT:No

    Products specifications
    Product Coated Gas Connectors
    Style MIP x FIP
    Style with Ball Valve
    Type 5/8" OD
    Color Yellow
    Material Stainless Steel
    Size 1/2" x 3/4"
    Length 24"
