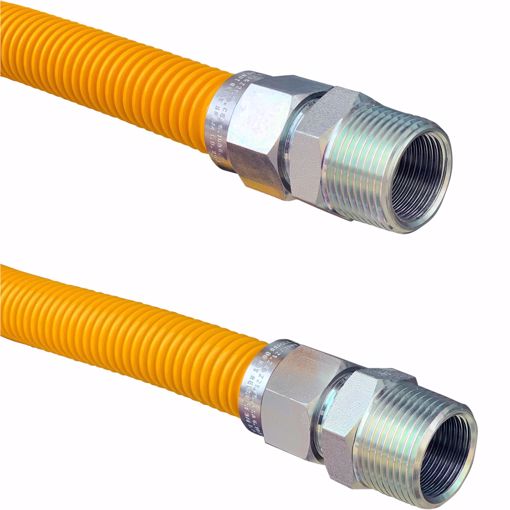

1" OD (3/4" ID) X 36" Long, 3/4" Male Pipe Thread X 3/4" Male Pipe Thread, Yellow Coated Corrugated Stainless Steel Gas Connector

• 255,900BTU (74,997)W
• Durable stainless steel 304 material
• Corrugation extends all the way to the fitting for increased tubing flexibility
• Quality flared end fittings create a metal-to-metal seal in critical applications
• 100% leak tested to ensure safety and quality for a product you can trust
• Corrosion resistant connectors add additional safety in highly corrosive environments or in areas where caustic chemicals are located
• Minimum fitting tightening torque (in-lb/N-M) 400 / 45.19, Maximum fitting tightening torque 780 / 88.13
• For proper product selection, use the ID and length of the line to locate the BTU rating

Country of Origin:China

Material:Stainless Steel

Size:3/4" x 3/4"

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

BTU:255,900BTU (74,997)W

ID:3/4"

OD:1"

Max Pressure:1/2 psi

Temperature Range:32F - 212F

Working Pressure:1/2 psi

Working Temperature:32F - 212F

Approved Applications:Indoor & Outdoor Gas Appliances

Color:Yellow

Length:36"

Nut Material:Steel Q235

Coating:Yellow Anti-Corrosion Coating

Warranty:1 Year

AB100 Certified:N/A

End Connections:MIP

ANSI Standard:ANSI Standard:ANSI Z21.24ANSI Z21.75

CSA Listed:Yes

Lead Law Compliant:No

MASS Approved:Yes

NSF Certified:No

HAZMAT:No

Spec Sheet

Warranty
