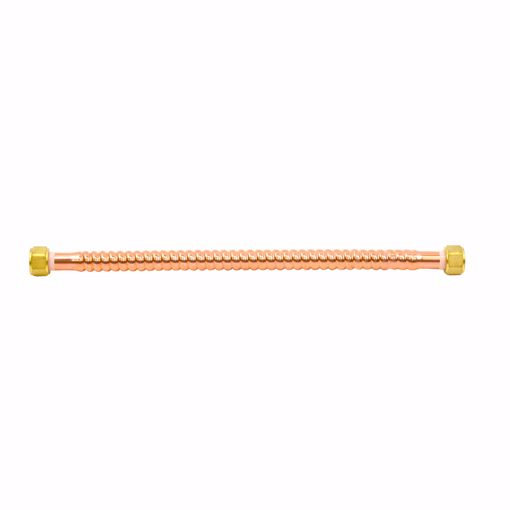

3/4" FIP x 24" Copper Corrugated Water Heater Connector

• Durable corrugated copper provides superior flexibility for easy installation
• Integrated dielectric sleeve provides protection against galvanic corrosion
• Includes rubber washers for a tight seal
• Simple installation with no special tools required
• Lead free
• UPC listed
• Complies with NSF, ANSI, ASME & CSA specifications

Country of Origin:China

Material:Metal

Size:3/4" x 3/4"

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Max Temperature:160°F

Max Pressure:125 psi

Temperature Range:100°F to 160°F

Working Pressure:115 psi

Working Temperature:120°F

Approved Applications:Water Heaters

Color:Copper

Gasket Material:EPDM

Length:24"

Warranty:1 Year

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:FIPxFIP

ANSI Standard:ANSI 372

ASME Standard:ASME A112.18.6

CEC Compliant:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:Yes

NSF Standard:NSF 372

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN 61

Spec Sheet
