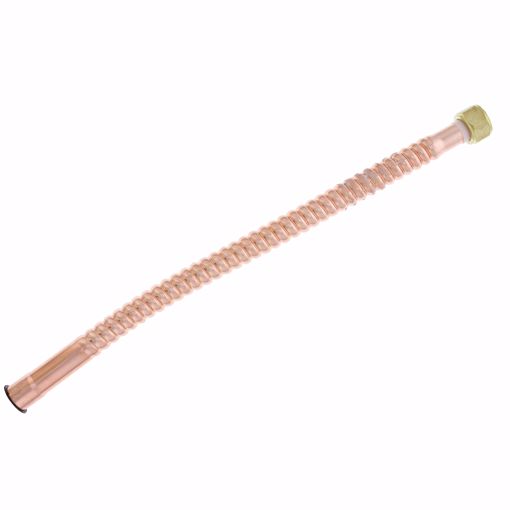

    3/4" FIP x 3/4" SWT x 18" Copper Corrugated Water Heater Connector

    PBHVAC
    SKU: J35718
    • Durable corrugated copper provides superior flexibility for easy installation
    • Integrated dielectric sleeve provides protection against galvanic corrosion
    • Includes rubber washer for a tight seal
    • Simple installation with no special tools required
    • Lead free
    • UPC listed
    • Complies with NSF, ANSI, ASME & CSA specifications

    Connect the water supply to your water heater with this durable copper corrugated connector from Jones Stephens. Constructed of copper, this water heater connector includes an integrated dielectric sleeve to provide protection against corrosion and eliminates the need for an additional dielectric union. Rubber washer is included to create a secure connection and reliable seal. Jones Stephens plumbing connectors are manufactured to the highest quality standards for contractors and maintenance repair professionals.

    • Durable corrugated copper provides superior flexibility for easy installation
    • Integrated dielectric sleeve provides protection against galvanic corrosion
    • Includes rubber washer for a tight seal
    • Simple installation with no special tools required
    • Lead free
    • UPC listed
    • Complies with NSF, ANSI, ASME & CSA specifications

    Country of Origin:China

    Material:Copper

    Size:3/4" x 3/4"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Working Pressure:115 psi

    Working Temperature:120°F

    Color:Copper

    Gasket Material:EPDM

    Length:18"

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2018ANSI 61-2021ANSI 372-2016

    ASME Standard:ASME A112.18.6-2017

    CEC Compliant:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:No

    NSF Standard:NSF Standard:NSF Standard:NSF Standard:NSF 372-2016NSF 61-2018NSF 61-2022NSF 372-2022

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 61-2018CAN 61-2021

    Products specifications
    Product Water Heater Connectors
    Style Corrugated
    Type FPT x Sweat
    Color Copper
    Material Copper
    Size 3/4" x 3/4"
    Length 18"
