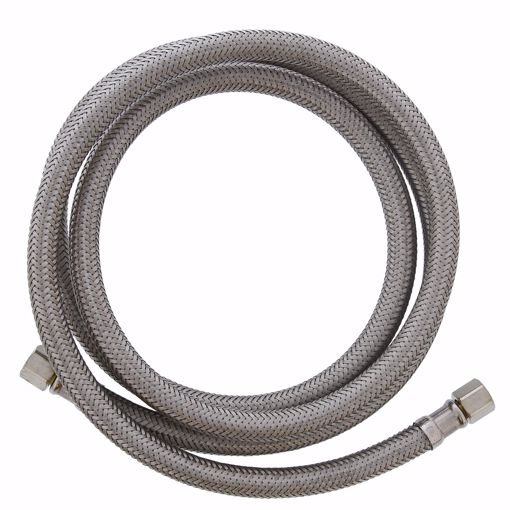

    1/4" Compression x 1/4" Compression x 60” Braided Stainless Steel Ice Maker Connector

    PBHVACLF
    SKU: S04231
    • Used to connect ice maker to water supply
    • Working temperature: 68°F – 158°F
    • Working pressure: 124 PSI
    • Leak proof seal
    • No special tools needed
    • Flexible, braided stainless steel connector resists kinking and creasing
    • UPC listed
    • Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61: Q =0.5, and NSF/ANSI 14 standards
    • Lead free

    Connect your ice maker to its water supply with confidence with Jones Stephens’ 1/4" Compression x 1/4" Compression x 60” Braided Stainless Steel Ice Maker Connectors. This connector features a high-quality outer braid of stainless steel and exclusive crimp-on fittings for maximum performance and a leak proof seal. Installation is quick and easy with no special tools or pipe bending necessary. Additionally, the flexible, braided stainless steel connector resists kinking and creasing. Its inner core of PVC withstands temperatures of 68°F – 158°F – providing reliable, trouble-free service.

    • Used to connect ice maker to water supply
    • Working temperature: 68°F – 158°F
    • Working pressure: 124 PSI
    • Leak proof seal
    • No special tools needed
    • Flexible, braided stainless steel connector resists kinking and creasing
    • UPC listed
    • Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61: Q =0.5, and NSF/ANSI 14 standards
    • Lead free

    Country of Origin:China

    Material:Stainless Steel

    Size:1/2" x 1/4"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Max Temperature:158°F

    Temperature Range:68°F - 158°F

    Working Pressure:124 psi

    Working Temperature:158°F

    Approved Applications:Icemaker

    Color:Stainless Steel

    Gasket Material:Santoprene

    Length:60"

    End Connection Material:Brass

    Warranty:1 Year

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:Compression

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2021: Q =0.5ANSI 14-2010a

    ASME Standard:ASME A112.18.6-2017

    CEC Compliant:No

    CSA Listed:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:No

    NSF Standard:NSF Standard:NSF Standard:NSF 372-2022NSF 61-2021: Q =0.5NSF 14-2010a

    SDWA Compliant:Yes

    CAN Standard:CAN Standard:CAN 372-2022CAN 61-2021: Q =0.5

    Products specifications
    Product Supply Lines
    Style Ice Maker
    Type OD x OD
    Color Stainless Steel
    Material Stainless Steel
    Size 1/2" x 1/4"
    Length 60"
