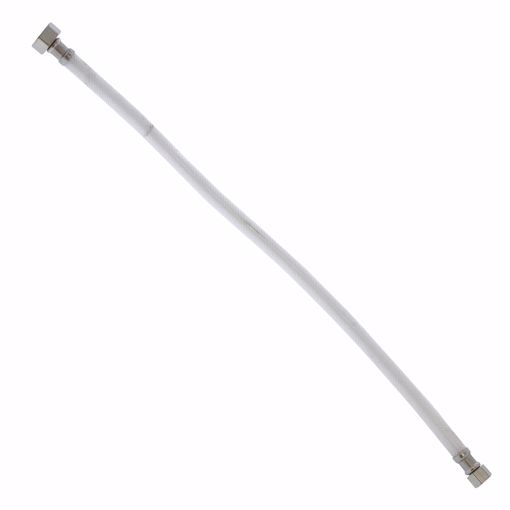

3/8" Compression x 1/2" FIP x 20” Vinyl Faucet Connector

• Used for supplying water to faucets
• Working pressure: 124 PSI
• Inner core of PVC withstands temperatures of 68°F-158°F
• Quick and easy installation
• Flexible vinyl connector resists kinking and creasing
• Nickel plated nut
• cUPC listed
• Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61: Q =0.5, and NSF/ANSI 14 standards
• ASME A112.18.6/CSA B125.6
• Lead free

Country of Origin:China

Material:Material:PVC outer layer w/Polyester Braided JacketReinforced PVC Body

Size:3/8" x 1/2"

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Max Temperature:173°F (82°C)

Max Pressure:450 psi

Temperature Range:68°F - 158°F

Working Pressure:124 PSI

Working Temperature:158°F

Approved Applications:Faucet

Color:White

Gasket Material:Santoprene

Length:20"

End Connection Material:Brass

Warranty:1 Year

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:End Connections:CompressionFIP

ANSI Standard:ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2021: Q =0.5ANSI 14-2010a

ASME Standard:ASME A112.18.6-2017

CEC Compliant:No

CSA Listed:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:No

NSF Standard:NSF Standard:NSF Standard:NSF 372-2022NSF 61-2021: Q =0.5NSF 14-2010a

SDWA Compliant:Yes

CAN Standard:CAN Standard:CAN 372-2022CAN 61-2021: Q =0.5
