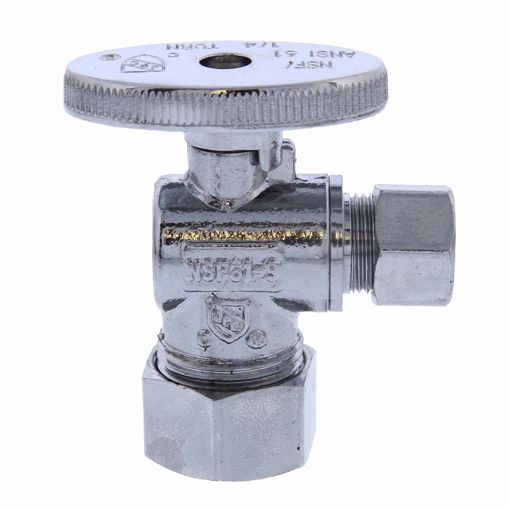

5/8" OD Comp x 3/8" OD Comp Quarter-Turn Angle Supply Stop Valve, Chrome Plated

• Chrome plated finish
• Quarter-turn oval style handle
• Angle stop design typically used when water supply pipe comes from the wall
• Lead Law Compliant
• cUPC listed

Country of Origin:China

Handle Included:Yes

Handle Length:1.7"

Handle Material:Zinc Alloy

Handle Type:Oval

Material:Brass

# of Handles:1

Size:5/8" x 3/8"

Valve Body Material:Brass

Valve Body Style:Angle

Valve Included:Yes

Valve Operator:Quarter-Turn Handle

Valve Size:5/8" x 3/8"

Valve Stem Material:Brass

Valve Type:Angle Supply Stop Valve

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Working Pressure:100 PSI

Working Temperature:40°F - 160°F

Color:Chrome Plated

Turn Type:Quarter-Turn

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:Compression

ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2020: Q = 0.5

ASME Standard:ASME A112.18.1-2018

CEC Compliant:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:No

NSF Standard:NSF Standard:NSF 372-2022NSF 61-2020: Q = 0.5

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:CAN 372-2022CAN 61-2020: Q = 0.5
