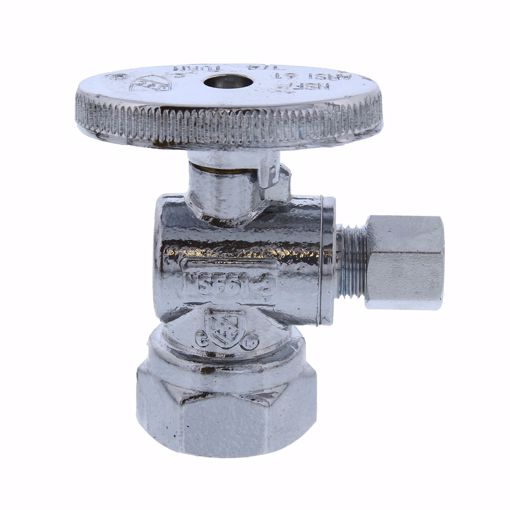

    Picture of 1/2" FIP x 1/4" OD Comp Quarter-Turn Angle Supply Stop Valve, Chrome Plated

    1/2" FIP x 1/4" OD Comp Quarter-Turn Angle Supply Stop Valve, Chrome Plated

    PBLF
    SKU: S10328
    • Chrome plated finish
    • Quarter-turn oval style handle
    • Angle stop design typically used when water supply pipe comes from the wall
    • Lead Law Compliant
    • cUPC listed

    Jones Stephens FIP x Compression Supply Stop Valves control water flow to household plumbing fixtures such as faucets and toilets, and major appliances such as dishwashers, washing machines, and refrigerator ice makers. By turning the valve handle, the flow of water leading to the plumbing fixture can be stopped, allowing for maintenance and repair without turning off water to the entire home. Chrome plated and manufactured of corrosion-resistant materials, all parts are designed with quality engineering and construction to be durable and reliable and to meet Jones Stephens’ highest quality standards.

    • Chrome plated finish
    • Quarter-turn oval style handle
    • Angle stop design typically used when water supply pipe comes from the wall
    • Lead Law Compliant
    • cUPC listed

    Country of Origin:China

    Handle Included:Yes

    Handle Length:1.7"

    Handle Material:Zinc Alloy

    Handle Type:Oval

    Material:Brass

    # of Handles:1

    Size:1/2" x 1/4"

    Valve Body Material:Brass

    Valve Body Style:Angle

    Valve Included:Yes

    Valve Operator:Quarter-Turn Handle

    Valve Size:1/2" x 1/4"

    Valve Stem Material:Brass

    Valve Type:Angle Supply Stop Valve

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Working Pressure:100 PSI

    Working Temperature:40°F - 160°F

    Color:Chrome Plated

    Turn Type:Quarter-Turn

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:End Connections:FIPCompression

    ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2020: Q = 0.5

    ASME Standard:ASME A112.18.1-2018

    CEC Compliant:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:No

    NSF Standard:NSF Standard:NSF 372-2022NSF 61-2020: Q = 0.5

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN Standard:CAN 372-2022CAN 61-2020: Q = 0.5

    Products specifications
    Product Supply Stops
    Style Angle
    Type FIP x OD
    Color Chrome Plated
    Material Brass
    Size 1/2" x 1/4"
