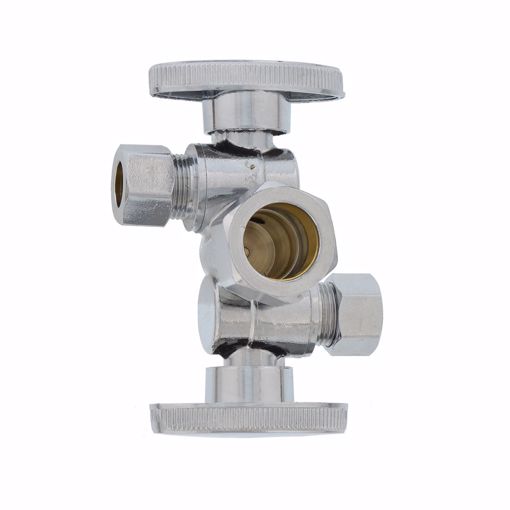

    5/8" OD Comp x 3/8" OD Comp x 3/8" OD Comp Quarter-Turn Dual Outlet and Handle Supply Stop Valve, Chrome Plated

    SKU: S10405
    • Chrome plated finish
    • Quarter-turn oval style handle
    • Angle stop design typically used when water supply pipe comes from the wall
    • Valve allows single inlet to have two separately controlled outlets
    • Meets or exceeds NSF/ANSI 61-2012, ASME A112.18.1-2018/CSA B125.1-18, Safe Drinking Water Act Section 1417(d) and Section 116875 of the California Health & Safety Code
    • cUPC listed

    Jones Stephens Dual Supply Stop Valves control water flow to household plumbing kitchen fixtures such as faucets and dishwashers. By turning the valve handle, the flow of water leading to each individual plumbing fixture can be stopped, allowing for maintenance and repair without turning off water to the entire home or the other kitchen fixtures. Chrome plated and manufactured of corrosion-resistant materials, all parts are designed with quality engineering and construction to be durable and reliable and to meet Jones Stephens’ highest quality standards.

    • Chrome plated finish
    • Quarter-turn oval style handle
    • Angle stop design typically used when water supply pipe comes from the wall
    • Valve allows single inlet to have two separately controlled outlets
    • Meets or exceeds NSF/ANSI 61-2012, ASME A112.18.1-2018/CSA B125.1-18, Safe Drinking Water Act Section 1417(d) and Section 116875 of the California Health & Safety Code
    • cUPC listed

    Country of Origin:China

    Handle Included:Yes

    Handle Length:1.74"

    Handle Material:Zinc Alloy

    Handle Type:Oval

    Material:Brass

    # of Handles:1

    Size:5/8" x 3/8" x 3/8"

    Valve Body Material:Brass

    Valve Body Style:Dual

    Valve Included:Yes

    Valve Operator:Quarter-Turn Handle

    Valve Size:5/8" x 3/8" x 3/8"

    Valve Stem Material:Brass

    Valve Type:Dual Supply Stop Valve

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Working Pressure:125 psi

    Working Temperature:40°F - 160°F

    Color:Chrome Plated

    Turn Type:Quarter-Turn

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:Compression

    ANSI Standard:ANSI 61-2020: Q = 0.5

    ASME Standard:ASME A112.18.1-2018

    CEC Compliant:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:No

    NSF Standard:NSF 61-2020: Q = 0.5

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN 61-2020: Q = 0.5

    Products specifications
    Product Supply Stops
    Style Angle
    Style Dual
    Type Compression
    Color Chrome Plated
    Material Brass
    Size 5/8" x 3/8" x 3/8"
