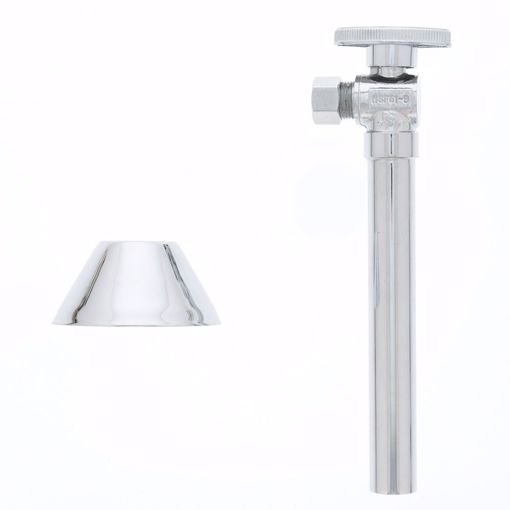

    1/2" SWT x 3/8" OD Comp Quarter-Turn Angle Supply Stop Valve with 5" Extension and Escutcheon, Chrome Plated

    SKU: S10423
    • Chrome plated finish
    • Quarter-turn oval style handle
    • Angle stop design typically used when water supply pipe comes from the wall
    • Includes 5" extension with bell escutcheon
    • Meets or exceeds NSF/ANSI 61-2012, ASME A112.18.1-2018/CSA B125.1-18, Safe Drinking Water Act Section 1417(d) and Section 116875 of the California Health & Safety Code
    • cUPC listed

    Jones Stephens Sweat x Compression Supply Stop Valves with Extension control water flow to household plumbing fixtures such as faucets and toilets, and major appliances such as dishwashers, washing machines, and refrigerator ice makers. By turning the valve handle, the flow of water leading to the plumbing fixture can be stopped, allowing for maintenance and repair without turning off water to the entire home. Chrome plated and manufactured of corrosion-resistant materials, all parts are designed with quality engineering and construction to be durable and reliable and to meet Jones Stephens’ highest quality standards.

    • Chrome plated finish
    • Quarter-turn oval style handle
    • Angle stop design typically used when water supply pipe comes from the wall
    • Includes 5" extension with bell escutcheon
    • Meets or exceeds NSF/ANSI 61-2012, ASME A112.18.1-2018/CSA B125.1-18, Safe Drinking Water Act Section 1417(d) and Section 116875 of the California Health & Safety Code
    • cUPC listed

    Country of Origin:China

    Handle Included:Yes

    Handle Length:1.74"

    Handle Material:Zinc Alloy

    Handle Type:Oval

    Material:Brass

    # of Handles:1

    Size:1/2" x 3/8"

    Valve Body Material:Brass

    Valve Body Style:Angle

    Valve Included:Yes

    Valve Operator:Quarter-Turn Handle

    Valve Size:1/2" x 3/8"

    Valve Stem Material:Brass

    Valve Type:Angle Supply Stop Valve

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Working Pressure:125 psi

    Working Temperature:40°F - 160°F

    Color:Chrome Plated

    Length:5"

    Turn Type:Quarter-Turn

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:End Connections:SWTCompression

    ANSI Standard:ANSI 61-2020: Q = 0.5

    ASME Standard:ASME A112.18.1-2018

    CEC Compliant:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:No

    NSF Certified:No

    NSF Standard:NSF 61-2020: Q = 0.5

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN 61-2020: Q = 0.5

    Products specifications
    Product Supply Stops
    Style Angle
    Style with Extension
    Type SWT x OD
    Color Chrome Plated
    Material Brass
    Size 1/2" x 3/8"
    Length 5"
