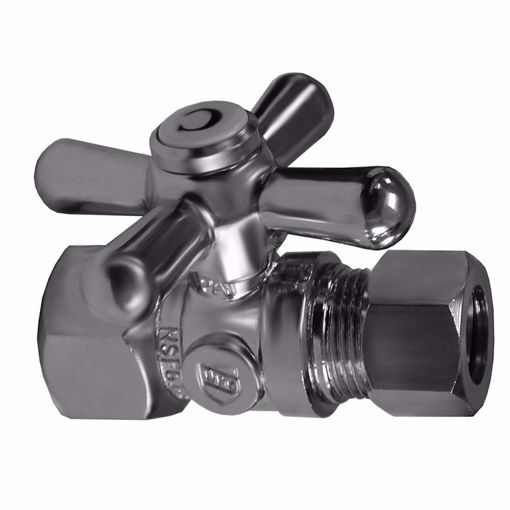

5/8" OD Comp x 3/8" OD Comp Quarter-Turn Straight Supply Stop Valve with Cross Handle, Chrome Plated

• Chrome plated finish
• Quarter-turn cross style handle
• Straight stop design typically used when water supply pipe comes up from the floor
• Includes hot, cold and blank buttons
• Meets or exceeds NSF/ANSI 372-2022, NSF/ANSI 61-2022, ASME A112.18.1-2018/CSA B125.1-18, Safe Drinking Water Act Section 1417(d) and Section 116875 of the California Health & Safety Code
• cUPC listed

Country of Origin:Taiwan

Handle Included:Yes

Handle Length:2.15"

Handle Material:Zinc Alloy

Handle Type:Cross

Material:Brass

# of Handles:1

Size:5/8" x 3/8"

Valve Body Material:Brass

Valve Body Style:Straight

Valve Included:Yes

Valve Operator:Quarter-Turn Handle

Valve Size:5/8" x 3/8"

Valve Stem Material:Brass

Valve Type:Straight Supply Stop Valve

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Working Pressure:84 psi

Working Temperature:40°F - 160°F

Color:Chrome Plated

Hot/Cold Indicators:Yes

Turn Type:Quarter-Turn

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:Compression

ANSI Standard:ANSI Standard:ANSI 372-2022ANSI 61-2022:Q=0.5

ASME Standard:ASME A112.18.1-2018

CEC Compliant:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:No

NSF Standard:NSF Standard:NSF 372-2022NSF 61-2022:Q=0.5

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:CAN 372-2022CAN 61-2022:Q=0.5
