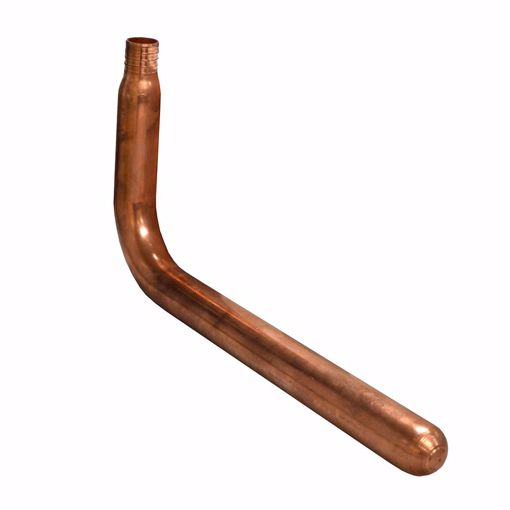

    1" F1807 PEX Stub Out Elbow, 6" x 12"

    SKU: S72008
    • Connects to ASTM F1807 (Crimp Style) PEX
    • Closed end for pressure testing
    • cUPC approved for use in USA and Canada
    • ANSI/NSF 61 & ANSI/NSF 372 approved for drinking water
    • ASTM B88 type L copper tube
    • Complies with Section 1417(d) of the Safe Drinking Water Act, the lead content requirements of Section 116875 of the California Health & Safety Code, and NSF/ANSI 372-2016

    Made to the highest quality standards, Jones Stephens' copper stub out elbows with open and closed ends for pressure testing are the professional, trusted choice for your installation. Install a stub out during the rough-in phase of your remodel or construction, and the exposed end will be ready for a connection to a fixture or device. These stub out elbows connect to ASTM F1807 (crimp style) PEX, are lead free, and are tested and listed by IAPMO for approval for use in drinking water services in the USA and Canada.

    • Connects to ASTM F1807 (Crimp Style) PEX
    • Closed end for pressure testing
    • cUPC approved for use in USA and Canada
    • ANSI/NSF 61 & ANSI/NSF 372 approved for drinking water
    • ASTM B88 type L copper tube
    • Complies with Section 1417(d) of the Safe Drinking Water Act, the lead content requirements of Section 116875 of the California Health & Safety Code, and NSF/ANSI 372-2016

    Country of Origin:China

    Material:Copper

    Size:1"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Length:6" x 12"

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:End Connections:F1807 Crimp PEXCTS (Spun Closed For Testing)

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI 372-2016ANSI 61-2018ANSI 14-2017

    ASTM Standard:ASTM F1807-2018a

    CEC Compliant:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:Yes

    NSF Certified:No

    NSF Standard:NSF Standard:NSF Standard:NSF 372-2016NSF 61-2018NSF 14-2017

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN 61-2018

    Products specifications
    Product Elbows
    Type Crimp (F1807)
    Material Copper
    Size 1"
    Length 6" x 12"
