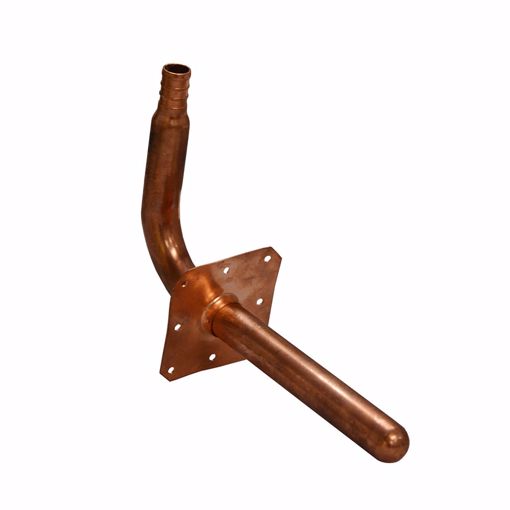

    ½" F1807 PEX Stub Out Elbow with Square Mounting Flange, 3-1/2" x 6"

    SKU: S72010
    • Connects to ASTM F1807 (Crimp Style) PEX
    • Closed end for pressure testing
    • Flange for nailing to a stud
    • cUPC approved for use in USA and Canada
    • Meets ASTM F1807, CSA B137.5, NSF/ANSI 14
    • ASTM B88 type L copper tube
    • Complies with Section 1417(d) of the Safe Drinking Water Act, the lead content requirements of Section 116875 of the California Health & Safety Code, and NSF/ANSI 372-2016

    Made to the highest quality standards, Jones Stephens' copper stub out elbows with open and closed ends for pressure testing are the professional, trusted choice for your installation. Install a stub out during the rough-in phase of your remodel or construction, and the exposed end will be ready for a connection to a fixture or device. These stub outs connect to ASTM F1807 (crimp style) PEX and come complete with a flange for nailing to a stud. They are lead free and are tested and listed by IAPMO for approval for use in drinking water services in the USA and Canada.

    • Connects to ASTM F1807 (Crimp Style) PEX
    • Closed end for pressure testing
    • Flange for nailing to a stud
    • cUPC approved for use in USA and Canada
    • Meets ASTM F1807, CSA B137.5, NSF/ANSI 14
    • ASTM B88 type L copper tube
    • Complies with Section 1417(d) of the Safe Drinking Water Act, the lead content requirements of Section 116875 of the California Health & Safety Code, and NSF/ANSI 372-2016

    Country of Origin:China

    Material:Copper

    Size:1/2"

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Length:3-1/2" x 6"

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:Yes

    UPC Listed:Yes

    End Connections:End Connections:F1807 Crimp PEXCTS (Spun Closed For Testing)

    ANSI Standard:ANSI Standard:ANSI Standard:ANSI 372-2016ANSI 61-2018ANSI 14-2017

    ASTM Standard:ASTM F1807-2018a

    CEC Compliant:No

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:Yes

    NSF Certified:No

    NSF Standard:NSF Standard:NSF Standard:NSF 372-2016NSF 61-2018NSF 14-2017

    SDWA Compliant:Yes

    HAZMAT:No

    CAN Standard:CAN 61-2018

    Products specifications
    Product Elbows
    Style with Mounting Flange
    Type Crimp (F1807)
    Material Copper
    Size 1/2"
    Length 3-1/2" x 6"
